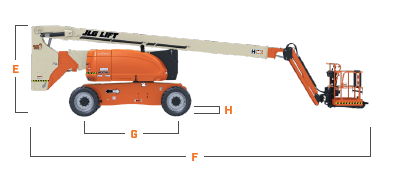

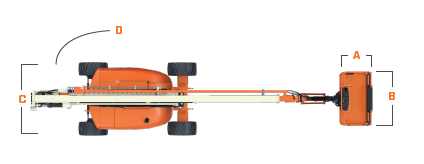

B - Overall Width = 2.48 m Overall length =11.22 m
C - Tailswing (Working Condition) = 0.74 m
G - Ground Clearance= 0.28 m
Key Features & Benefits
Articulated Diesel Booms Lifts are ideal for working over and around obstacles on the job site, not easily accessible by a Telescopic (straight) Boom Lift.
Offer exceptional outreach, high capacity, versatile performance & easy maintenance.
Ideal for rough terrain.
Elevates workers quickly, easily and efficiently for optimum productivity.

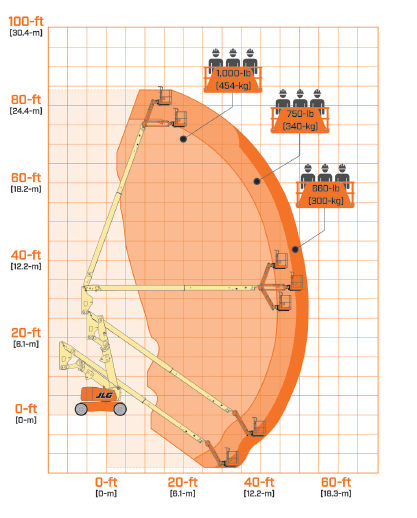

Offers a large working envelope.
Excellent manoeuvrability with turntables that rotate 360°.
Driveable when fully elevated.
Power & Transmission
Engine
DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Fuel Type
Diesel
Engine Fuel Tank Capacity
147.63
L
Auxiliary Power
12
V
Batteries
Drive
Electrical System
Generator Set
Generator Set Fuel Type
Generator Set Fuel Tank Capacity
L
Hydraulic System Capacity
151.42
L
Pump Motors
Diesel engine - DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine distress warning/shut down system
Gull wing steel turntable hoods
Spark arresting type muffler
Control ADE® - Advanced Design Electronics System
Hydrostatic drive transmission
Horn"
Cab
Platform
2.48 m x 11.22 m low mount platform
Side entry with drop bar mid rail
Multiple function operation
Full proportional drive joystick control with integral thumb steer switch
Full proportional main boom & swing joystick control
Multiple speed control for telescope, lower boom & platform rotate
Selectable creep speed on drive/lift & swing functions
