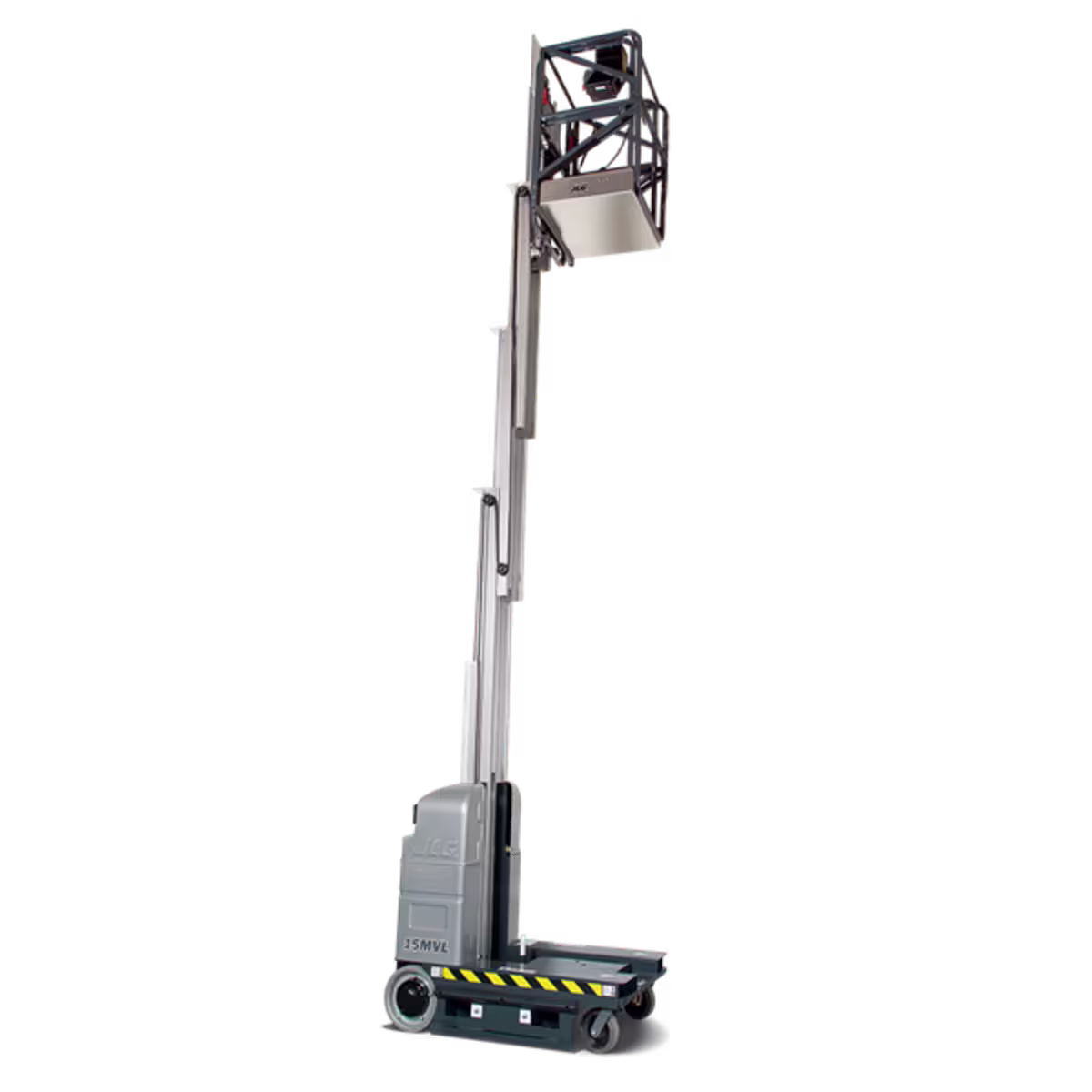

JLG 15MVL
Reach Dimensions
No drawings avalable.
No items found.
Machine Dimensions
No drawings avalable.
A - Platform Size - Stockpicking Platform (W x L) = 0.71 m x 1.22 m
B - Platform Size - Narrow Platform (W x L) = 0.56 m x 0.64 m
C - Platform Size - Extension Platform Retracted (W x L) = 0.66 m x 0.66 m
D - Platform Size - Extension Platform Extended (W x L) = 0.66 m x 1.24 m
E - Platform Entry Height = 0.46 m
F - Stowed Height = 1.98 m
G - Ground Clearance = 0.05 m
Key Features & Benefits
Push Around Lifts
Stock Pickers
Power Towers
Power & Transmission
No items found.
- 2 x 12 V 100 A/h AGM batteries
- Automatic 5 hour battery charger
- On-board diagnostics
- Automatic power off battery saver control
- Battery discharge indicator
- Direct electric 2WD
- Heavy duty planetory gear hubs
- Non marking tyres & casters
- Emergency brake release
- AC power cable to platform
Cab
Platform
- 0.66 m x 1.24 m slide bar entry extendable platform
- Safety interlocked controls
- Point & Go® fully proportional drive/steer single joystick control
- Joystick enable for lift & drive
- Variable speed elevation control
- Lanyard attach anchor
Telescopic System
Equipment & Accessories
- Low maintenance anodised aluminium mast
- Pothole protection system
- Manual descent
- Tilt light & alarm
- Key lock main power switch
- Hour meter
- Transportation tie down lugs
- Fork truck pockets
- Horn
- Amber strobe light
